RUBBER TIMING BELT

Quantity:
SKU: 237066343X
Model: STD TIMING BELT

{{ variable.name }}

{{ value.name }}
Product Details

Product Specification

TypeSTD 5M TIMING BELTModelSTD TIMING BELT
ParamsTechnical Description Profile: STS (STPD) S5M Pitch: 5.0 mm Overall Thickness: 3.4 mm Body Material: Neoprene (CR) Tensile Member: Fiberglass Cord Hardness: 92 Shore A Minimum Pulley Diameter: 22.3 mm Maximum Allowable Tensile Strength: 300 N per 10 mm belt width Ultimate Tensile Strength: 1200 N per 10 mm belt width Dimensional Tolerances: Width: ±0.5 mm Length: ±0.5 mm Thickness: ±0.2 mmMaterialRUBBER
Applicable IndustryIndustrial automation, packaging machinery, printing machinery, textile machinery, woodworking machinery, food processing equipment, conveyor systems, robotics, CNC equipment, medical equipment, material handling systems, and other medium-duty synchronous power transmission applications

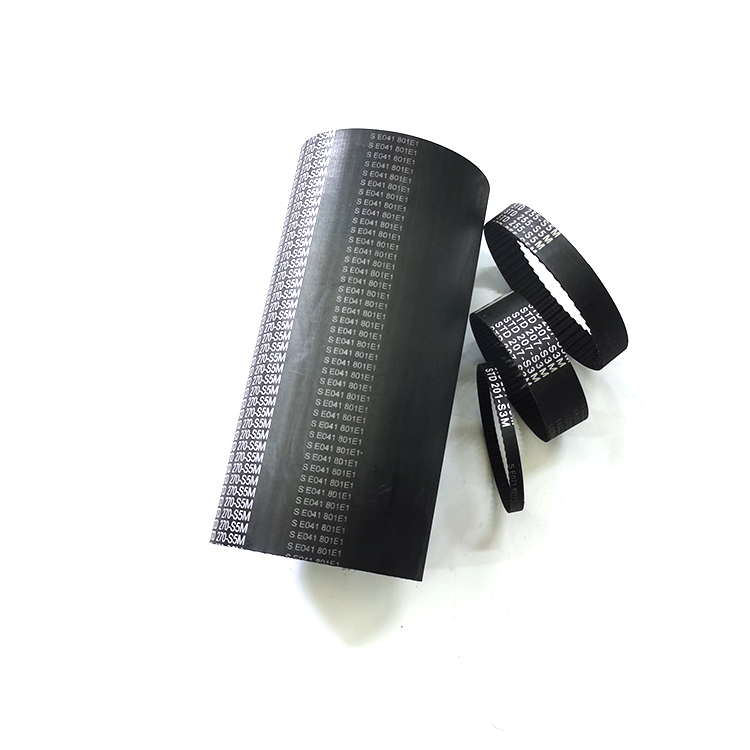

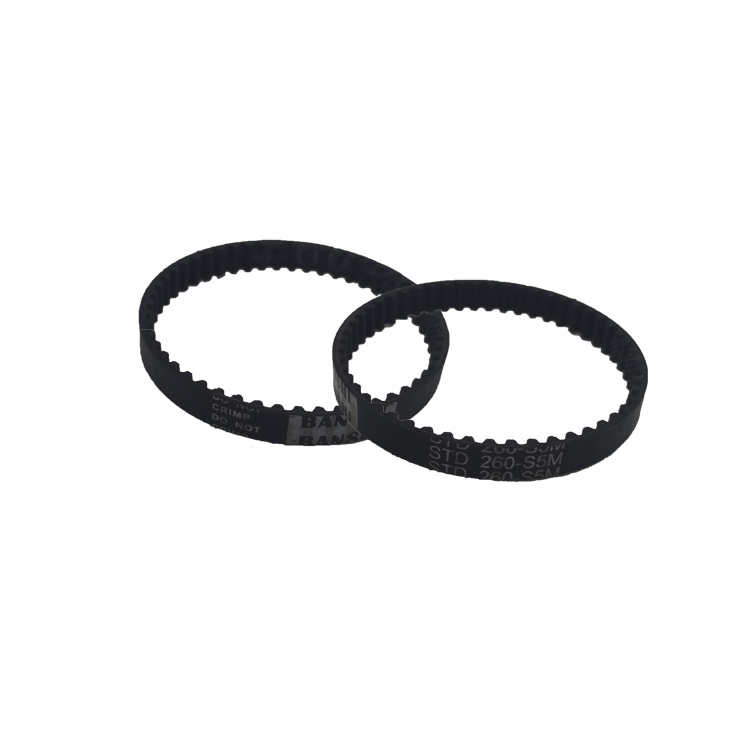

S5M TIMING BELT

S5M TIMING BELT


S5M TIMING BELT

S5M TIMING BELT
