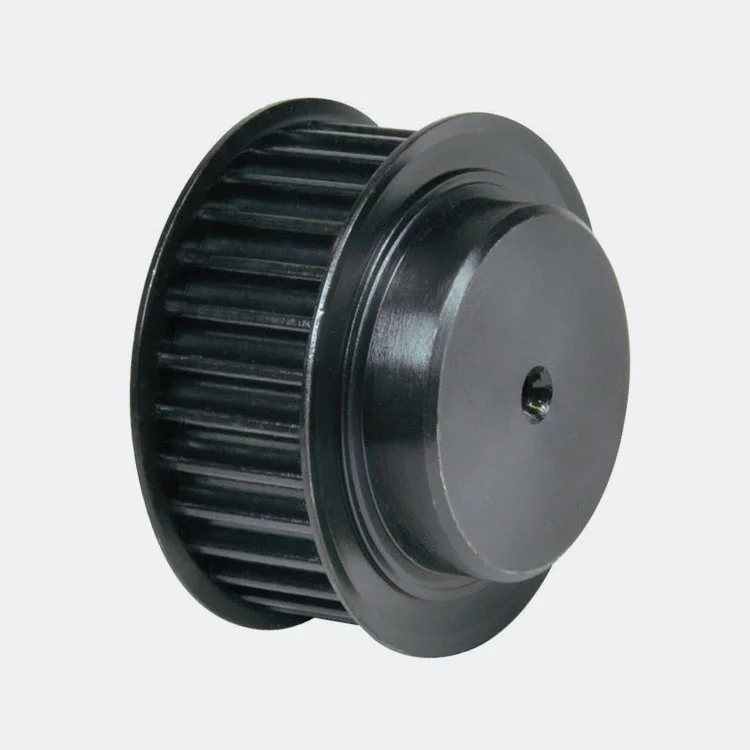

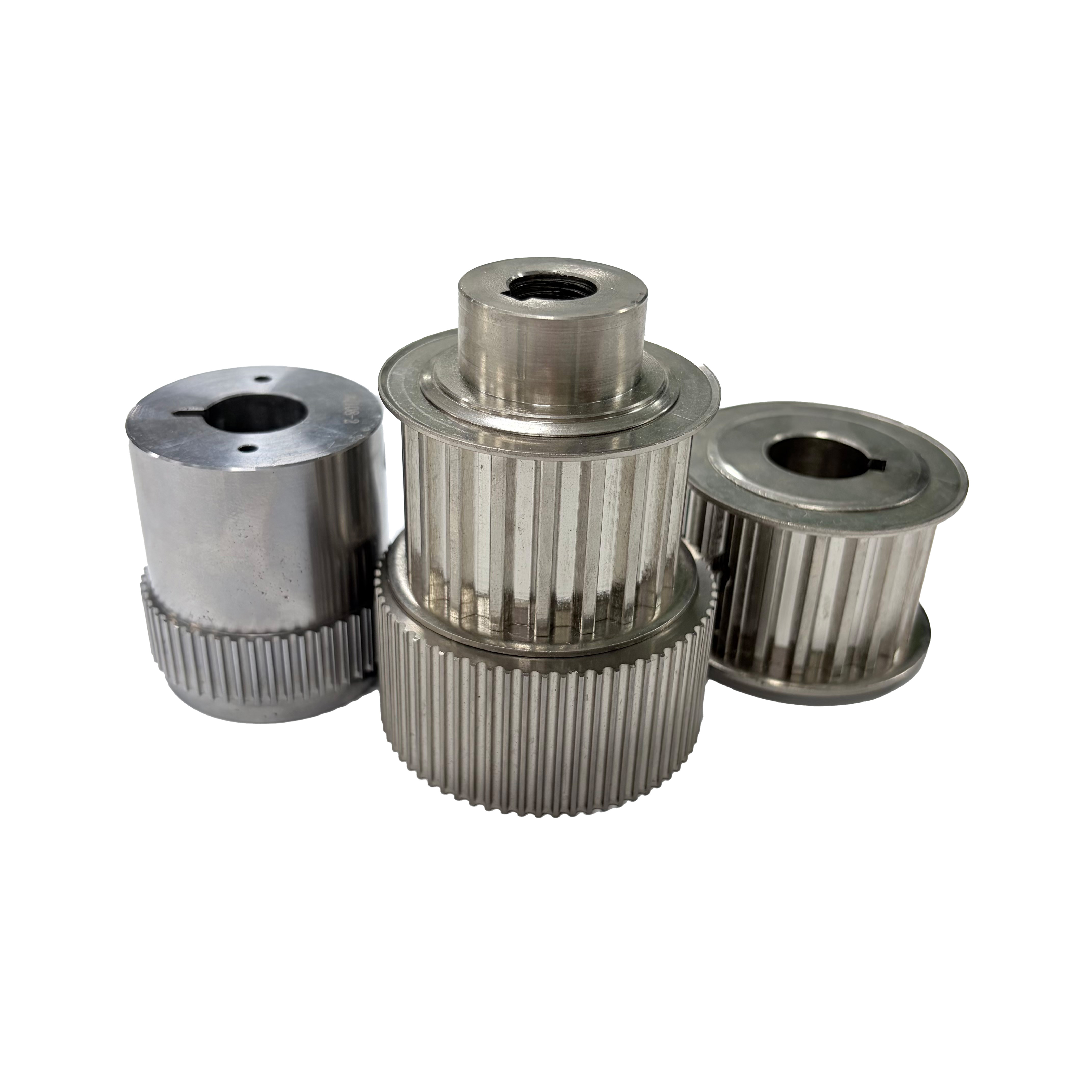

| Params | Tooth Profile: HTD (High Torque Drive)

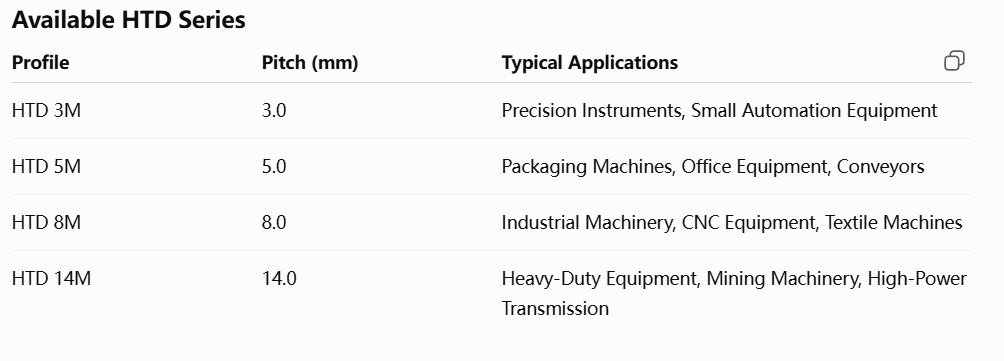

Available Pitches: 3M, 5M, 8M, 14M
Material: Aluminum Alloy, Carbon Steel, Stainless Steel, Cast Iron
Surface Treatment: Natural, Black Oxide, Zinc Plated, Anodized, Nickel Plated
Number of Teeth: 12–120 Teeth (Custom Available)
Bore Type: Pilot Bore, Finished Bore, Taper Bore, Keyway Bore
Bore Diameter: 5–100 mm (Custom Available)
Flange: Single Flange, Double Flange, Without Flange
Hub Type : Hub, No Hub, Double Hub
Tooth Accuracy: ISO 13050 / DIN Standard
Pitch Accuracy: High Precision CNC Machined
Concentricity: ≤0.03 mm
Maximum Operating Speed: Up to 8,000 rpm
Operating Temperature: -30°C to +120°C (Depending on Material)
Hardness Aluminum: HB 75–95; Steel: HRC 20–35 (Optional Heat Treatment Available)
Manufacturing Process: CNC Machining, Hobbing, Broaching, Drilling, Keyway Machining
Compatible Belts: HTD Rubber Timing Belts, HTD PU Timing Belts
Standards: ISO, DIN, ANSI
Applications: Packaging Machinery, Automation Equipment, Textile Machinery, Printing Machinery, CNC Machines, Food Processing Equipment, Conveyors, Woodworking Machinery
Custom Services: OEM, ODM, Custom Bore, Keyway, Surface Treatment, Lightweight Design
Quality Inspection: 100% Dimension Inspection Before Delivery | Material | Aluminum Alloy/Steel/Stainless Steel/Cast Iron |
| Applicable Industry | Packaging Machinery, Automation Equipment, Textile Machinery, Printing Machinery, CNC Machines, Food Processing Equipment, Conveyors, Woodworking Machinery | |
