rubber timing belt

Name: "rubber timing belt"
Rating: 5 (798 reviews)

Quantity:

SKU: 7256073097

Model: HTD TIMING BELT

Product Details

Type	HTD 8M TIMING BELT	Model	HTD TIMING BELT
Params	Technical Description Profile: HTD 8M Pitch: 8.0 mm Overall Thickness: 5.6 mm Body Material: Neoprene (CR) Tensile Member: Fiberglass Cord Hardness: 92 Shore A Minimum Pulley Diameter: 40 mm Minimum Pulley Teeth: 16 Maximum Allowable Tensile Strength: 780 N per 10 mm belt width Ultimate Tensile Strength: 3120 N per 10 mm belt width Dimensional Tolerances: Width: ±0.5 mm Length: ±0.5 mm Thickness: ±0.2 mm	Material	rubber
Applicable Industry	Applicable Industries: Industrial automation, packaging machinery, printing machinery, textile machinery, woodworking machinery, food processing equipment, conveyor systems, CNC machines, robotics, material handling systems, agricultural machinery, mining equipment, and construction machinery.

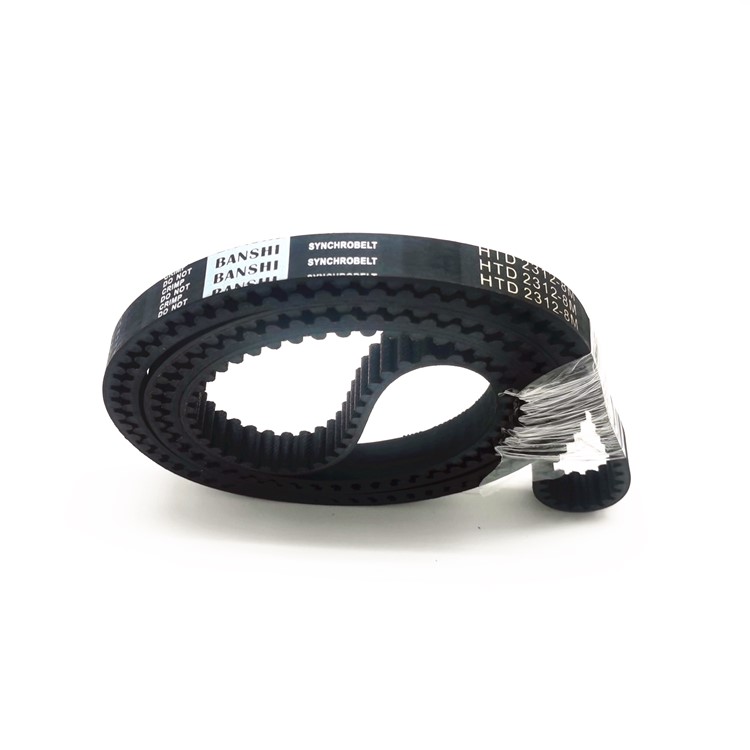

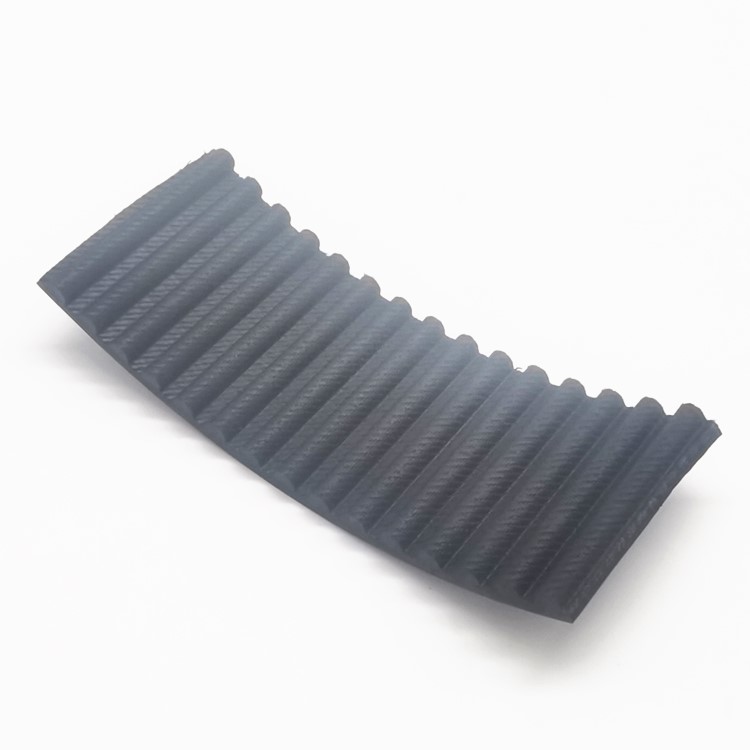

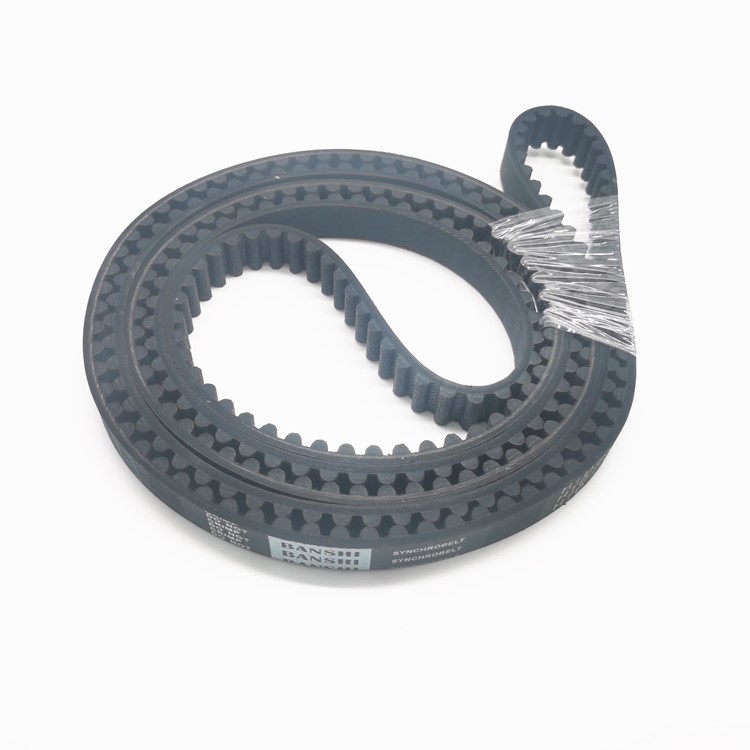

HTD 8M TIMING BELT
